Clean Inspect Test Kit SM MM Autotest + 1625 nm KI-TK072A

Kit, Complete, SM & MM incl 1625 nm Contractor 2000

Source & Autotest meter, scope & cleaning kit. 1310/1550/1625 nm & 850/1300 nm, SM MM fiber.

A fiber optic testing, inspection and cleaning kit, with fiber power meter and light source pair, perfect for low to medium test volume on single mode & multimode systems.

Typical test, inspection & cleaning applications

  • Optical power at 25 calibrated λ, -60 to +15 dBm range.
  • Optical loss on SM fiber 1310 / 1550 / 1625 nm, 57 dB range.
  • Optical loss on MM fiber 850 / 1300 nm, 40 dB (@ 62.5 um) range, EF compliant.
  • Loss test automation & reporting with AutoTest and KITS™ software.
  • Optical continuity / tone checking, 12 fiber Multi-Fiber ID, 47 dB range.
  • Optical connector end face inspection microscope x200.
  • Optical connector cleaning tools & materials.
  • Generally meets safety regulations & standards based test procedures.

Connector & battery summary

SC PC/APC & LC/APC interchangeable connector adapters.
Meter accepts PC & APC polish. Source accepts APC polish.
Microscope accepts SC PC/APC & LC/APC, 2.5 mm PC ferrules, Also OK for occasional 1.25 mm PC use.
Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.

We gladly adjust kits to meet your exact needs.

Alternative: Video microscope

Alias: TK-072A, KI072A, KI-072A, K1-072A

In the Box

KI2825-APC

Optical Light Source Triple Laser, Dual LED KI 2825-APC

  • Versatile productivity source
  • Triple SM & Dual MM testing
  • Encircled Flux compliant
More Info
KI2600-INGAAS

Handheld Optical Power Meter KI 2600-InGaAs

  • Productivity power meter
  • InGaAs detector for SM & MM testing
  • Ideal for cable installers
More Info
KI6610

FiberSafe Fiber Connector Scope x200 KI6610

  • 200x microscope for inspection of SM, MM & MPO networks
  • Best quality, image & eye safety
  • Wide range of interchangeable adaptors
More Info
OPT662A

Fibersafe Scope Adapter / SC-APC OPT662A

SC APC adaptor

More Info
OPT154B

Carry Case & Accessories for Test Kits, Semi-Rigid OPT154B

Carry Case, KI2x / KI9x, Cleaning tools

  • Highly cushioned and convenient carry case, sturdily constructed of durable custom moulded urethane foam, splash resistant cloth outer covering with zipper and separator, carry strap. Accommodates any two KI2000 style instruments, microscope, VFL pen.
  • With cleaning accessories.
  • Semi-rigid case construction is comfortable to use, avoids damaging other objects, and it's compartment layout helps avoid leaving items on-site.
  • Space for additional: (not supplied) batteries, connector adaptors, test leads, documentation, mains power pack, two mandrel wraps.
More Info
OPT076

LC / SC Hybrid Adapter OPT076

LC Simplex adaptor, metal body

More Info
OPT661A

Fibersafe Scope Adapter / LC-APC OPT661A

LC APC adaptor

More Info

Optional Accessories

KI6358

VFL Visual Fault Locator Pen KI6358

OPT051

FC / SC Hybrid Adapter OPT051

FC-SC. OPT081 adaptor is preferred for power meters, since FC ceramic sleeves can break easily. Tough metal body, precision ceramic sleeve

OPT040

ST / SC Hybrid Adapter OPT040

ST-SC. Tough metal body, precision ceramic sleeve

OPT081

2.5 mm Universal / SC Hybrid Adapter OPT081

Universal 2.5 mm-SC, also compatible with duplex SC. Tough metal body, precision ceramic sleeve. Please observe application advice.

OPT085

1.25 mm Universal / SC Hybrid Adapter OPT085

Universal 1.25 mm-SC. Also fits: Duplex LC, Senko CS, SN duplex, and USconec MDC duplex connectors. Tough metal body, precision ceramic sleeve. Please observe application advice.

OPT080

MU /SC Hybrid Adapter OPT080

MU-SC

OPT072

LC or F3000 / SC Hybrid Adapter OPT072

For F3000-SC PC Simplex. This is an LC-PC adapter that also fits F3000. For LC-PC only use, ceramic sleeve. OPT076 is better value and more robust.

OPT060

E2000 / SC Hybrid Adapter OPT060

E2000-SC, ceramic sleeve

OPT060G

E2000 / SC Hybrid Adapter Green OPT060G

E2000-SC, green, ceramic sleeve

OPT071

LSA-DIN47256 AVIM /SC Hybrid Adapter OPT071

AVIM / LSA / DIN47256 - SC. Ceramic sleeve

OPT662A

Fibersafe Scope Adapter / SC-APC OPT662A

SC APC

OPT663A

Fibersafe Scope Adapter / FC-APC OPT663A

FC APC

OPT681A

Fibersafe Scope Adapter / 2.5 mm APC Universal OPT681A

Universal 2.5 mm, APC, Simplex / Duplex, and terminus for ruggedised connectors. For regular use, a connector specific adapter is preferred

OPT682A

Fibersafe Scope Adapter / 1.25 mm APC Universal OPT682A

Universal 1.25 mm, APC, Simplex / Duplex and terminus for ruggedised connectors. For regular use, a connector specific adapter is preferred

OPT672A

Fibersafe Scope Adapter / 1.6 mm APC Terminus OPT672A

Universal 1.6 mm APC for ARINC 801 Size 18 Terminus, MIL-DTL-38999 Size 16 Terminus

OPT685A

Fibersafe Scope Adapter / 2 mm APC Terminus OPT685A

Universal 2.0 mm APC terminus

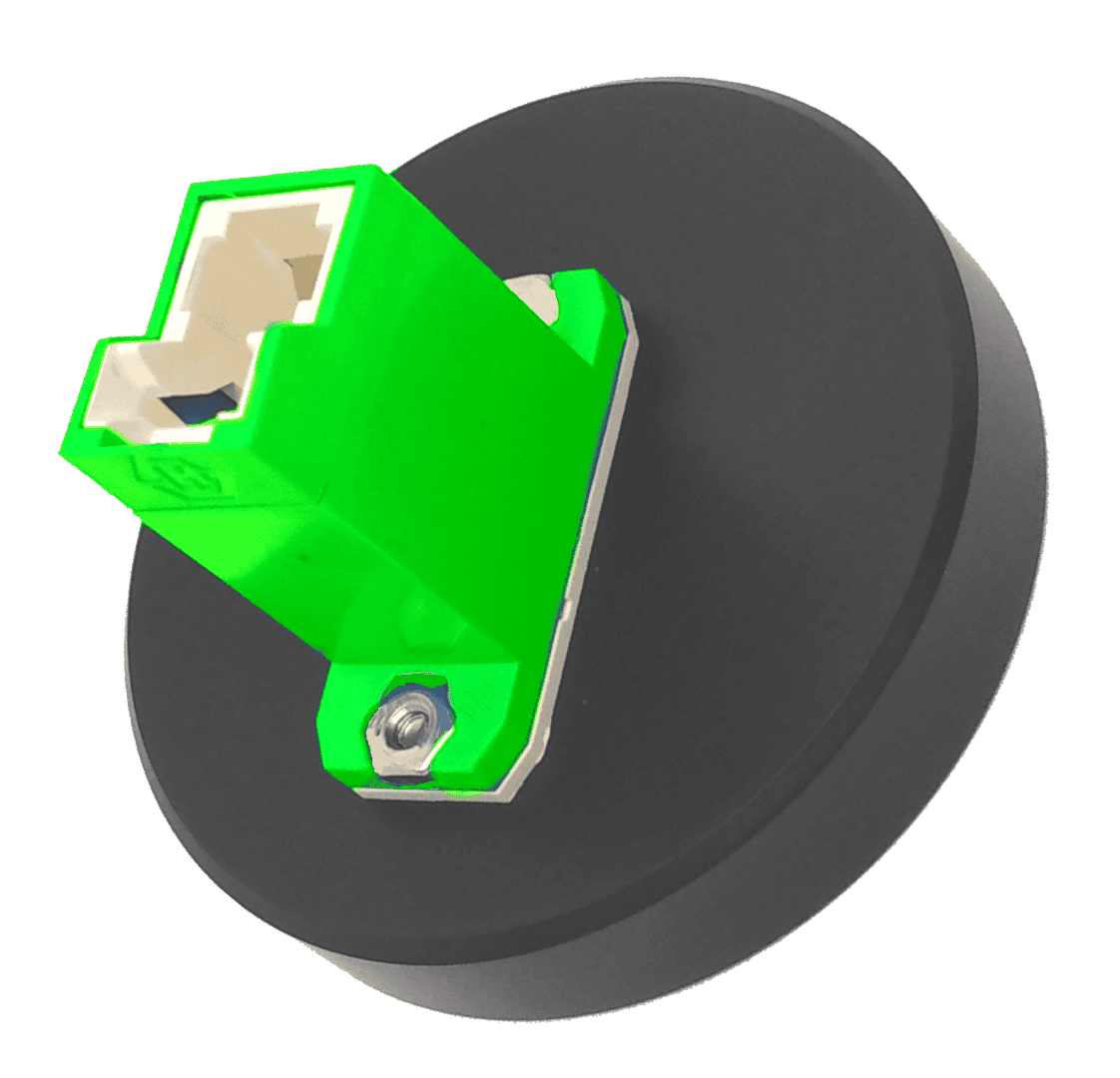

OPT668A

Fibersafe Scope Adapter / E2000-APC OPT668A

E2000 APC

TOOL CLEAN-03

Fiber Optic Cleaner, 2.5 mm Stick-Type TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

TOOL CLEAN-04

Fiber Optic Cleaner, 1.25 mm Stick-type TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc

TOOL CLEAN-09B

Connector Cleaner Replacement Reel TOOL CLEAN-09B

Spare / replacement cartridge for TOOL CLEAN-09A

TOOL CLEAN-09A

Fiber Optic Tip Cleaner, Cassette Reel Type TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

OPT730-SCA-SCA

SC-APC to SC-APC Fiber Test Cable, Simplex SMF 2m

SC/APC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

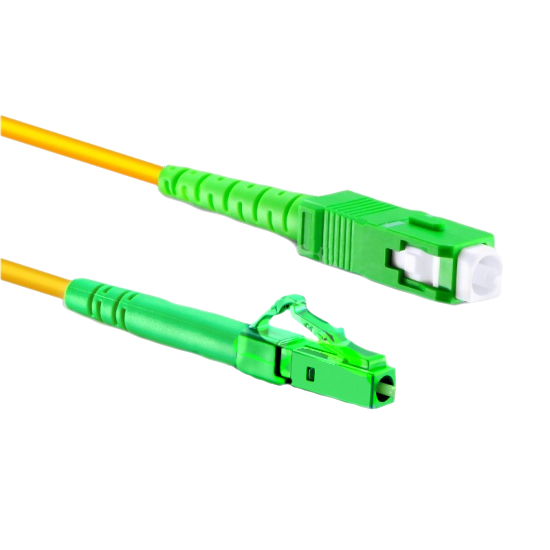

OPT731-LCA-SCA

LC-APC to SC-APC Fiber Test Cable, Simplex SMF 2m

LC/APC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCA-LCA

LC-APC to LC-APC Fiber Test Cable, Simplex SMF 2m

LC/APC - LC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT684A

Video Camera for Fibersafe Microscope OPT684A

OPT046

SC / SC Through Adapter OPT046

SC-SC, Tough metal body, precision ceramic sleeve

OPT073

LC Blue Thru Connector Ceramic Sleeve

LC PC SM Adapter Single Mode Simplex, Blue

OPT074

LC Green Thru Connector, Ceramic Sleeve

LC APC SM Adapter Single Mode Simplex, Green

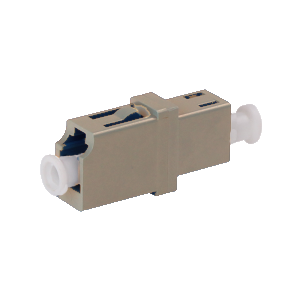

OPT075

LC Beige Thru Connector, Ceramic Sleeve

LC MM Adapter Multimode Simplex, Beige
